Custom Bushings form china manufacture
From material selection to precision manufacturing -- we help OEM buyers reduce wear, failure, and maintenance costs with engineered bushing solutions.
Why Standard Bushings Often Fail
Real-world applications require more than catalog dimensions.
Premature Wear
Caused by incorrect material hardness matching the shaft.
Seizure Issues
Failure under poor lubrication or high heat conditions.
Deformation
Material yield strength exceeded by shock loads.
High Maintenance
Frequent downtime due to short service intervals.
"In most cases, the problem is not the design -- it's the wrong bushing material for the job."
What Can Be Customized?
We engineer every aspect of the bushing to fit your specific assembly and operating environment.
-
✓
Material Systems & Bearing Layers Bronze, Steel, Bimetal, PTFE Composites
-
✓
Dimensions & Tolerances Precision CNC machining to micron-level tolerances (IT7/IT6)
-
✓
Lubrication Design Custom oil grooves (Figure 8, Loop, Straight), oil holes, or graphite plugs
-
✓

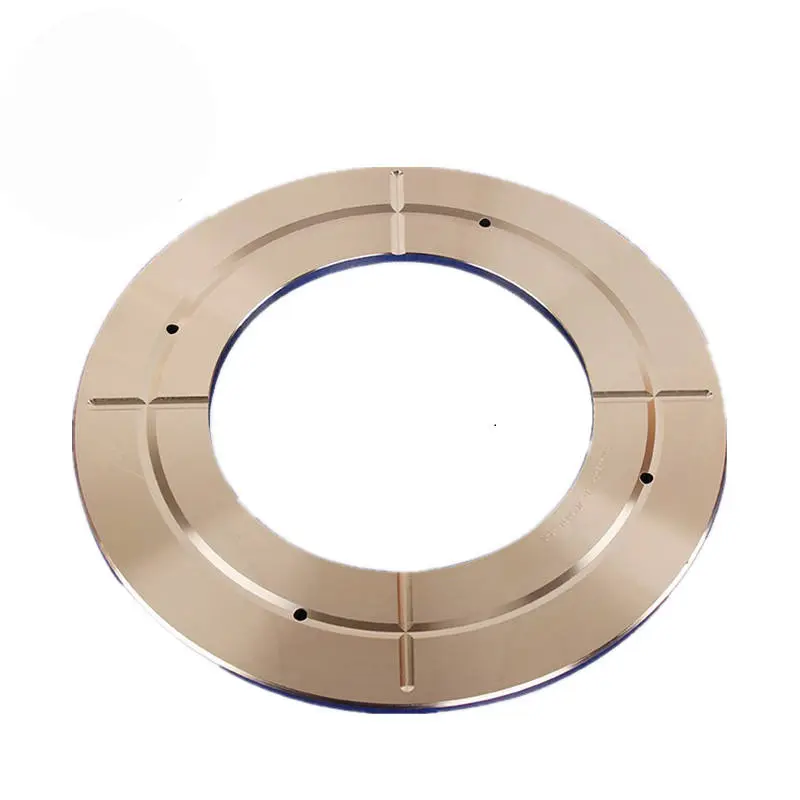

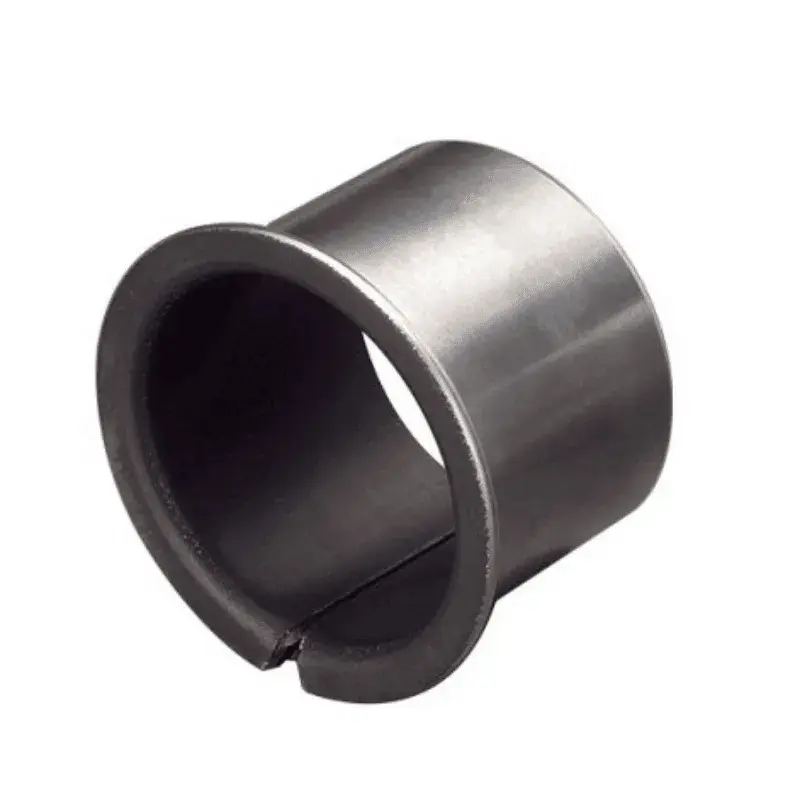

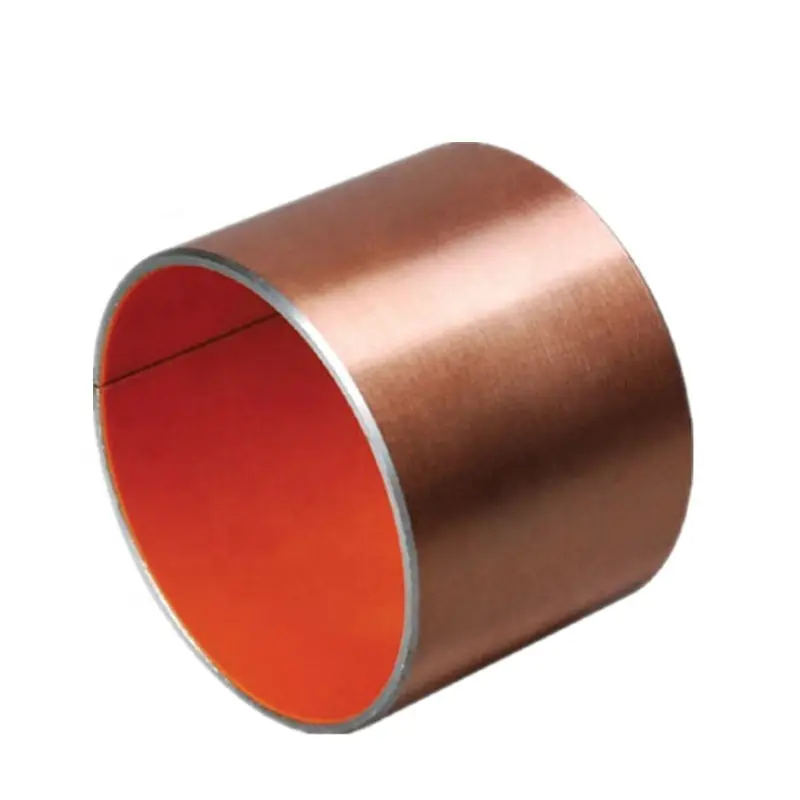

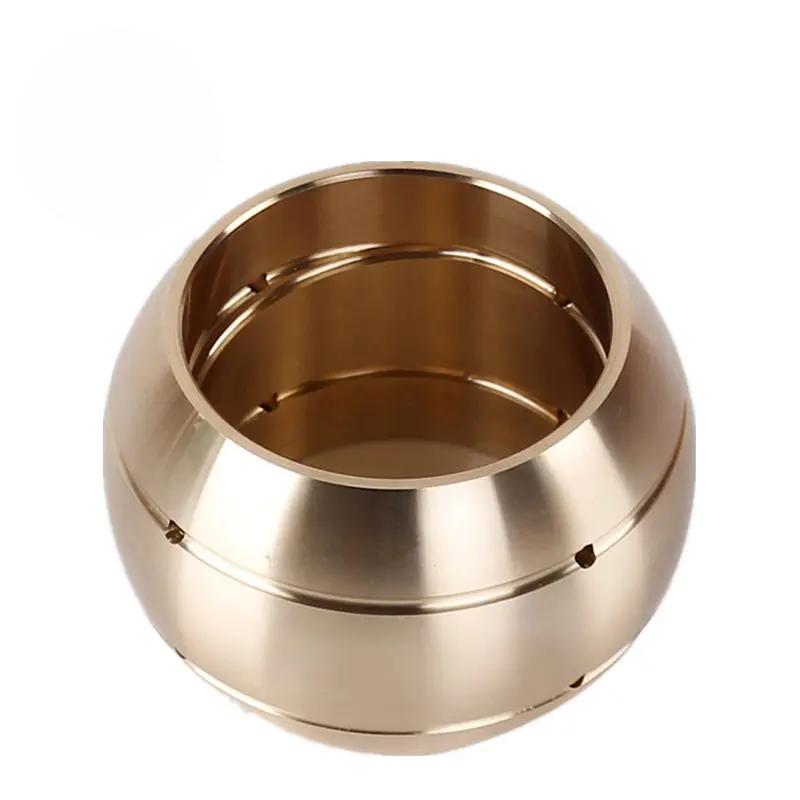

Structural Geometry Solid, wrapped, flanged, thrust washers, spherical, or slide plates
Manufacturing Workflow
A streamlined process designed for B2B efficiency and technical accuracy.
Drawing Review
Evaluation of materials, tolerances, and structures. We confirm feasibility and offer optimization advice.
Sampling
Production of prototype samples for dimension verification and assembly testing.
Production
Mass manufacturing with strict in-process quality control (IPQC) and batch consistency.
Global Delivery
Secure packaging and logistics coordination for sea or air freight to your facility.
Customization Dimensions
We engineer solutions tailored to your specific application parameters. From material composition to geometric complexity, we control every variable to ensure optimal performance.
Material Expertise
PTFE Composite (SF-1)
Steel backing + Sintered Bronze + PTFE lining.
Maintenance-free, dry running, chemical resistance.
Hydraulic pumps, valves, food machinery.
POM Composite (SF-2)
Steel backing + Bronze + POM (Acetal) layer.
Boundary lubrication, heavy load, shock resistance.
Vehicle chassis, lifting gear, machine tools.
Wrapped Bronze (CuSn8)
High-density bronze strip with oil pockets.
High load capacity, anti-wear, dust resistant.
Forestry, agriculture, & construction equipment.
Graphite Plugged (JDB)
Solid bronze alloy embedded with solid lubricant.
High temp resistance, heavy load, self-lubricating.
Mold guides, steel mills, marine applications.
Sintered (FU/Oil)
Powder metallurgy (Bronze/Iron) impregnated with oil.
Self-lubricating at high speeds, low noise, low cost.
Electric motors, fans, home appliances.

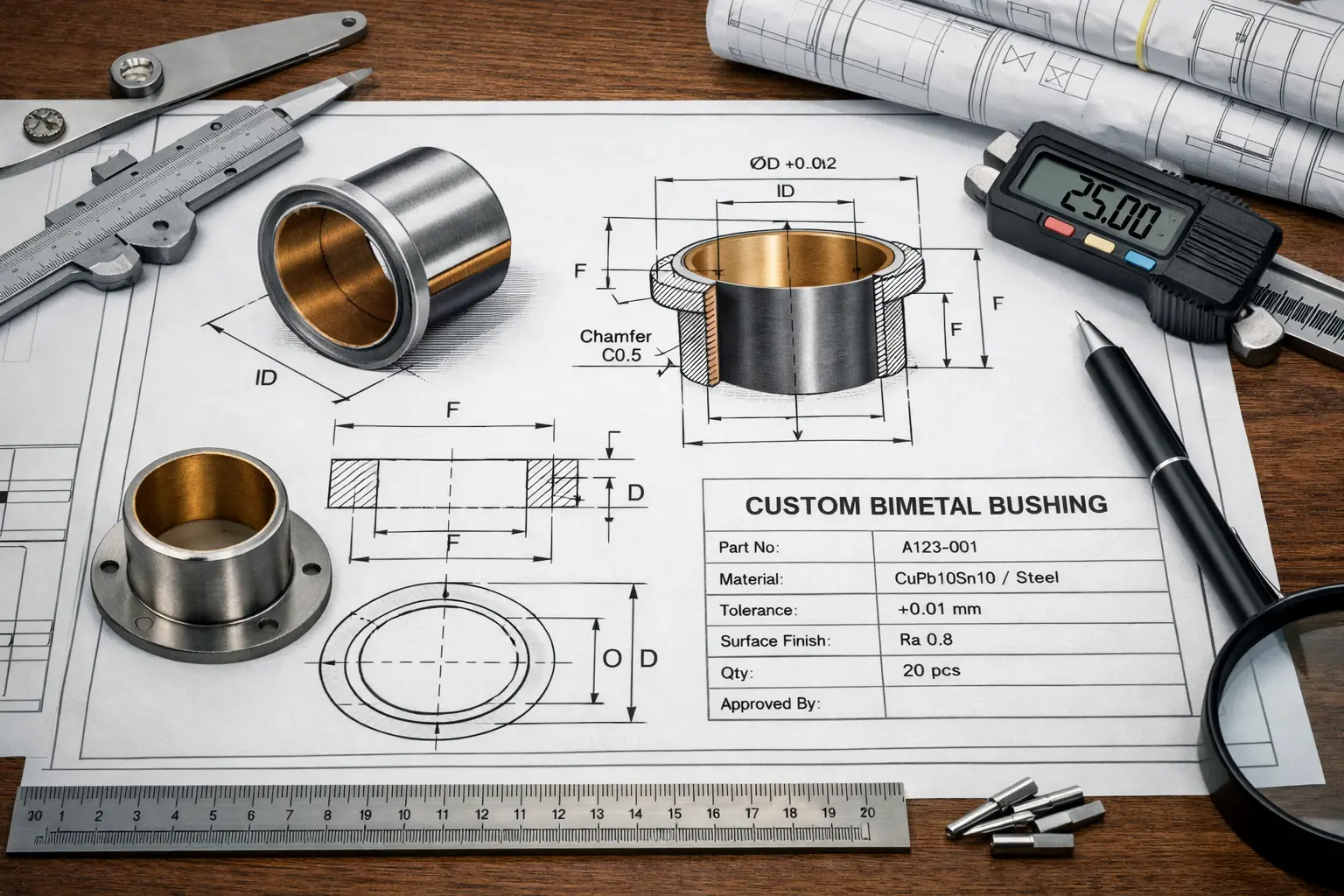

Bi-Metal Bushings
Steel shell with Leaded Bronze lining (CuPb10Sn10).
High fatigue strength, impact resistance.
Engine con-rods, chassis, heavy undercarriages.
Machined Brass
CNC turned solid brass/bronze alloy components.
Corrosion resistant, fully custom geometry, flanges.
General machinery, valves, replacement parts.
Hardened Steel
Heat-treated bearing steel (GCr15 / C45).
Extreme load capacity, high wear resistance, grease req.
Excavator buckets, crane booms, heavy pivots.
Structure & Geometry
*We also support oil grooves, oil holes, clench locks, and spherical shapes based on drawings.
03 Tolerance
- ISO Standards (H7, E7, etc)
- Press-fit Allowance Control
- CMM Verification Reports
04 Surface
- Tin / Zinc Plating
- Copper Flash / Wash
- MoS₂ Coating
Oil Groove & Hole Customization
Proper lubrication film formation is critical for bearing longevity. FESODA provides full CNC customization for oil grooves, positioning holes, and solid lubricant pockets based on your hydrodynamic requirements.
Internal & External Grooves
We machine precise grooves to distribute lubricant across the contact area. Grooves can be applied to the inner diameter (ID), outer diameter (OD), or flange face.
Single Loop / Oval
Standard for general lubrication. Ensures even distribution across the sliding surface.
Figure 8 / Crossed
Ideal for grease lubrication. Maximizes coverage for oscillating movements.
Straight Axial
Used for high-flow oil cooling or flushing out debris.
Circular / Annular
For continuous rotation where oil needs to be retained centrally.
Standard Configurations
- Oil Holes (H): Standard drill holes for lubricant entry.
- Countersunk (CS): Reduced stress concentration around holes.
- Stop Pins: For preventing bushing rotation in the housing.
Positioning Holes
Precise location relative to split lines or grooves to match your housing design.
Bleed/Vent Holes
Essential for hydraulic applications to prevent air pockets behind the bushing.
Chamfers & Radii
Internal and external chamfers to facilitate assembly (press-fit) and prevent shaft damage.
Split & Clinch
Custom split gaps or clinch-lock designs for wrapped bushings.
Graphite Plugged Bronze
For high-temperature or heavy-load applications where oil film cannot be maintained. We drill precise patterns into cast bronze (C86300/C93200) and press-fit solid graphite plugs.
Need a custom pattern not listed here?
Submit OEM DrawingHave a complex drawing?
Our engineering team can review your CAD/PDF files for manufacturability and cost optimization within 24 hours.
Choosing the Right Bushing Material
We don't push inventory -- we recommend the most suitable material based on your specific operating conditions.
| Operating Condition | Recommended Material |
|---|---|
| High Load & Impact / Shock | Bimetal Bushings (Steel + Bronze) |
| Poor Lubrication / Dry Running | Composite / Self-Lubricating (PTFE/POM) |
| High Sliding Speed | Tin Bronze (CuSn Alloys) |
| Contaminated / Dirty Environment | High Embeddability Bronze (Leaded) |
| Corrosive Environment | Aluminum Bronze or Stainless Steel |
The right material can extend service life by several times without increasing overall cost.
Why OEM Buyers Choose Us as Their Bushing Supplier
Years Experience
Deep understanding of tribology and material science.
Process Stability
Strong material control from sintering to final machining.
Project Support
Fast engineering response, sampling, and PPAP capability.
Looking for a Reliable Partner?
We focus on long-term B2B partnerships, not one-off retail sales.
Start Your InquiryNot Sure Which Material Fits?
Send us your drawing or application details. Our engineers will recommend the optimal bushing material and structure.
