Powder Metallurgy
Sintered Bushings
Engineered for high-volume efficiency. Oil-impregnated self-lubricating bearings offering consistent quality and cost-effectiveness for automotive, electric motors, and industrial applications.
What is a Powder Metallurgy Bushing?
Also known as a sintered bushing, this component is produced by compacting precision metal powders into a mold and sintering them at high temperatures.

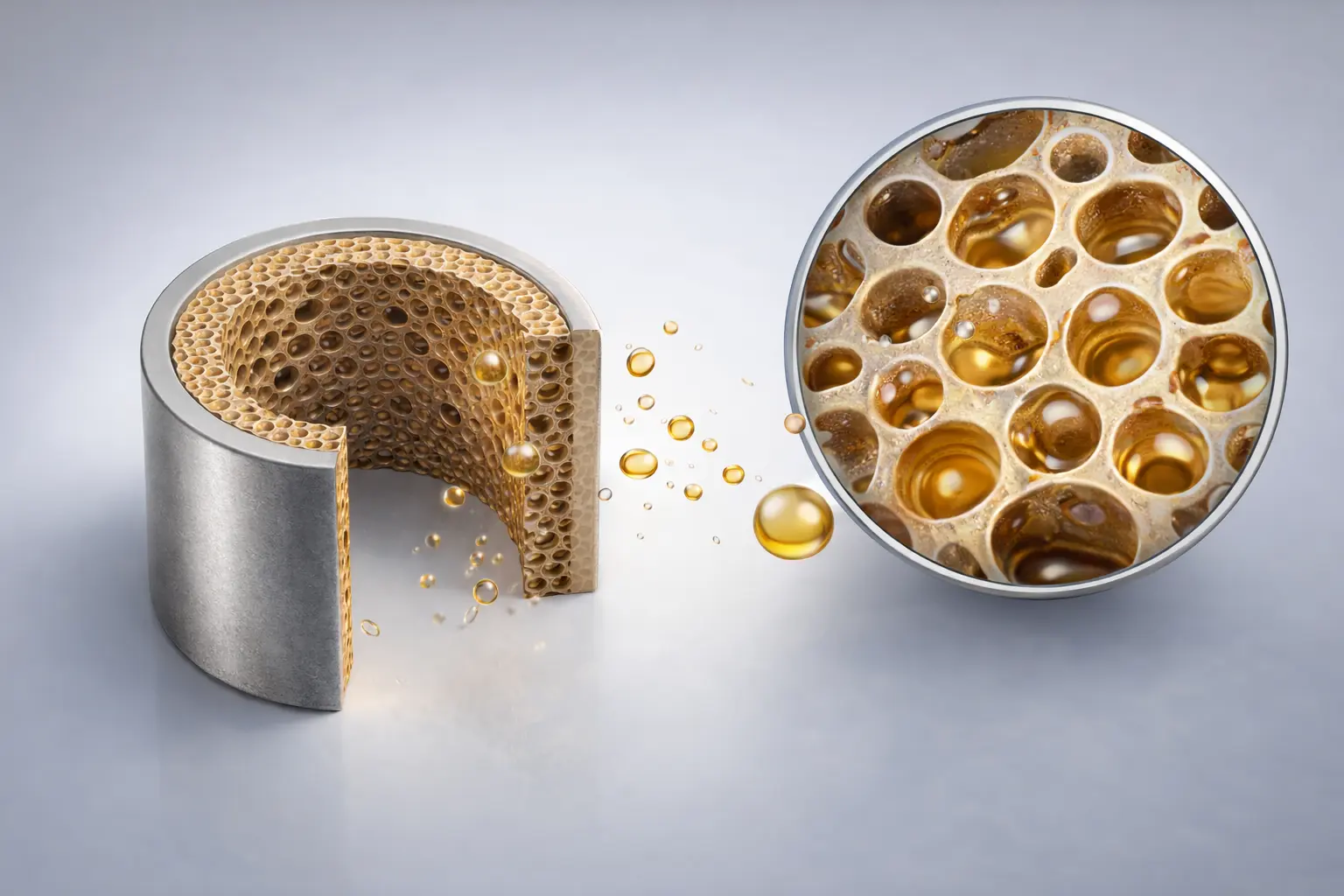

The unique manufacturing process creates a controlled porous structure within the metal matrix. These microscopic pores are vacuum-impregnated with lubricant oil, which is released during operation to create a hydrodynamic film, ensuring long-term self-lubrication without external maintenance.
Microscopic pores store up to 30% oil by volume.
Why Switch to Sintered Bronze/Iron?
Self-Lubricating
Oil-impregnated pores release lubricant automatically during rotation, reducing friction and eliminating the need for external greasing.
Mass Production Consistency
The sintering process ensures excellent dimensional repeatability. Ideal for high-volume automotive and appliance manufacturing.
Cost Efficiency
Near-net-shape manufacturing minimizes material waste and machining time compared to solid turned metal bushings.
Material Options
We select the precise powder composition based on your load, speed, and environmental requirements.
-
Fe
Iron-Based
High strength, lower cost. Good for moderate loads.
-
Cu
Bronze-Based (Copper)
Excellent corrosion resistance and thermal conductivity.
-
C
Fe-Cu Composite
Balanced performance and cost efficiency.
Customization Available
- • Graphite enhancement for dry running
- • Resin impregnation for sealing
- • Special synthetic oils (High Temp)
Technical Specifications
| Parameter | Standard Range | Notes |
|---|---|---|
| Operating Temp | -20°C to +120°C | Custom oils available for -50°C to +250°C |
| Max Sliding Speed | ≤ 2.5 m/s | Dependent on load |
| Max Load Capacity | ≤ 20 MPa | Static vs Dynamic load varies |
| PV Limit | 1.6 - 3.2 N/mm²·m/s | Material grade dependent |
| Oil Content | 18% - 30% (Vol) | Vacuum impregnated |
| Tolerance Standard | ISO 2795 / IT7 | Precision sizing available |
* Note: Above data represents general values. Specific performance depends on material composition (Iron vs Bronze), oil selection, and mating shaft hardness. Please consult our engineering team for critical applications.

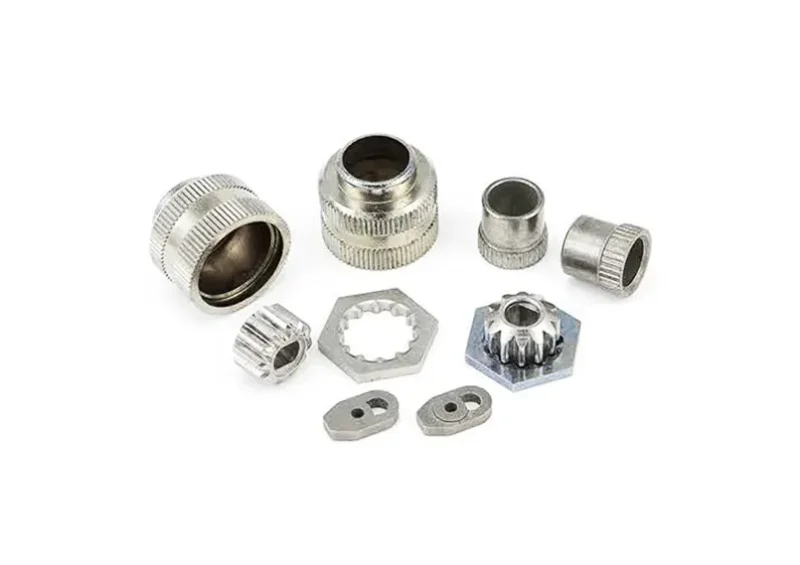

Available Forms & Applications
From standard cylindrical shapes to complex geometries based on OEM drawings.
Cylindrical Bushings
Standard straight sleeves.
Flanged Bushings
Radial & axial load support.
Spherical Bearings
For self-aligning motors.
Common Uses
- Electric Motors (Fans, Wipers)
- Home Appliances
- Office Equipment
- Power Tools
Comparison: When to Choose Powder Metallurgy?
| Bushing Type | Ideal Scenario | Cost (Vol) | Maintenance |
|---|---|---|---|
| Powder Metallurgy (Sintered) | High volume, medium load, hard-to-reach areas requiring self-lubrication. | Low | None (Self-Lube) |
| Solid Bronze (Cast/Turned) | High load, severe impact, dirty environments (with grease grooves). | High | Regular Greasing |
| Bimetal / Wrapped | Heavy load + Thin wall requirements. | Medium | Periodic |
Not sure if sintered bushings fit your application? Ask our engineers for a recommendation.
Start Your OEM Project
FESODA is your dedicated factory partner for reliable powder metallurgy components. Share your drawings or application details for a technical review and competitive quotation.
